A 48V DIY BOX typically refers to a custom-built power supply or battery system that provides 48 volts DC, often used for various DIY (Do-It-Yourself) projects, such as:
Common Uses of a 48V DIY Box:
-
Electric Vehicles (E-bikes, E-scooters, DIY EVs) – Many high-power motors run on 48V for better efficiency.
-
Solar Power Systems – Used in off-grid or hybrid solar setups with 48V battery banks.
-
DIY Power Walls – Home energy storage using lithium (LiFePO4) or lead-acid batteries.
-
Audio Amplifiers – Some high-end amplifiers require 48V (known as phantom power in pro audio).
-
Industrial/DIY Robotics – Higher voltage allows for more powerful motors.
-
DIY UPS (Uninterruptible Power Supply) – Backup power for servers or home appliances.

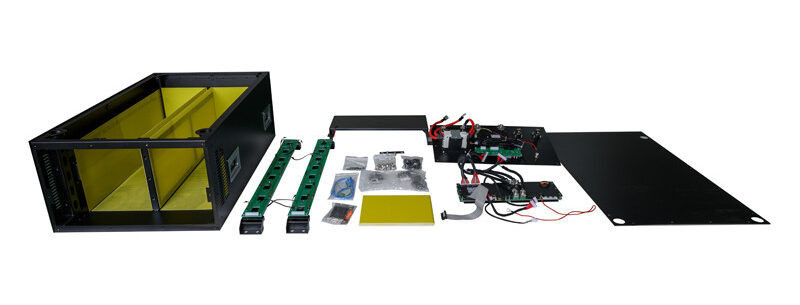

Components of a 48V DIY Box:
-
Battery Cells (e.g., LiFePO4, Li-ion, or lead-acid in series to reach 48V)
-
Battery Management System (BMS) – Protects against overcharge/discharge.
-
Charger – A 48V-compatible charger (often CC/CV for lithium batteries).
-
DC-DC Converters (if different voltages are needed).
-
Fuses & Circuit Breakers – Safety measures.
-
Enclosure – A protective case for the battery/power system.
-
Monitoring System (optional, like a voltmeter or Bluetooth BMS).
Example: DIY 48V LiFePO4 Battery Pack
-
16x LiFePO4 cells (3.2V each) in series = 51.2V nominal (48V system).
-
BMS (16S configuration) for balancing & protection.
-
Charger (~54.6V max for LiFePO4).
Safety Considerations:
-
High-voltage DC can be dangerous; proper insulation and fusing are crucial.
-
Lithium batteries require careful handling to avoid fires.
-
Always use a BMS for lithium-based systems.
Let’s design a 48V DIY Box tailored to your needs. To get started, I’ll need some details about your project.
Step 1: Define Your Project
What will your 48V DIY Box be used for?
-
☑️ E-bike/E-scooter
-
☑️ Solar Power Storage
-
☑️ DIY Power Wall
-
☑️ Robotics/High-Power Motors
-
☑️ Audio/Phantom Power
-
☑️ Other (Specify)
Step 2: Choose Battery Type
| Type | Voltage (Nominal) | Cycle Life | Cost | Weight | Best For |
|---|---|---|---|---|---|
| LiFePO4 | 48V (16S) | 2000-5000+ cycles | $$$ | Medium | Solar, EVs, Long Life |
| Li-ion (NMC) | 48V (13S-14S) | 500-1000 cycles | $$ | Light | E-bikes, High Power |
| Sealed Lead-Acid | 48V (4x12V) | 300-500 cycles | $ | Heavy | Cheap Backup Power |
🔹 Recommendation: LiFePO4 for long life, Li-ion for lightweight power, Lead-Acid for budget builds.
Step 3: Calculate Capacity (Ah/Wh)
-
Example: For a 1kWh (1000Wh) 48V system:
Capacity (Ah)=WhV=100048≈20.8Ah
→ You’d need a 48V 20Ah LiFePO4 battery.
🔹 What capacity do you need? (Small: 5-10Ah, Medium: 20-50Ah, Large: 100Ah+)
Step 4: Select a BMS (Battery Management System)
-
16S LiFePO4 BMS (for 48V)
-
Continuous Current Rating (e.g., 30A, 50A, 100A)
-
Bluetooth/Wi-Fi Monitoring? (Optional)
🔹 Example: Daly 16S 48V 100A BMS (for high-power applications).
Step 5: Charging & Power Delivery
-
Charger: 48V LiFePO4 charger (e.g., 54.6V 10A CC/CV).
-
DC-DC Converters? (If you need 12V/24V outputs).
-
Inverter? (If converting to 120V/230V AC).
Step 6: Safety & Enclosure
-
Fuses (e.g., 80A ANL fuse for high current).
-
Circuit Breaker (for easy shutdown).
-
Enclosure (Plastic/Pelican case for portability).
Example Build: 48V 20Ah LiFePO4 DIY Box
| Component | Example Part |
|---|---|
| Battery Cells | 16x 3.2V 20Ah LiFePO4 (EVE/Lishen) |
| BMS | Daly 16S 48V 100A BMS |
| Charger | 48V 10A LiFePO4 Charger |
| Fuse | 80A ANL Fuse + Holder |
| Enclosure | IP65 Plastic Box |
Next Steps:
-
Confirm your project type & power needs.
-
Choose between LiFePO4, Li-ion, or Lead-Acid.
-
Pick a BMS & charger.
-
Plan wiring & safety features.
Below is a detailed shopping list for a 48V DIY Box, customizable based on your project type (E-bike, solar, power wall, etc.).
🛒 48V DIY Box Shopping List
*(Example: 48V 20Ah LiFePO4 Battery System for Solar/E-bike/Robotics)*
1️⃣ Core Components
| Item | Example Product | Qty | Approx. Price | Notes |
|---|---|---|---|---|
| LiFePO4 Cells (3.2V 20Ah) | EVE LF105 (AliExpress) | 16 | ~$20-$30/cell | 16S for 48V 20Ah |
| BMS (16S 48V) | Daly 16S 100A BMS | 1 | ~$80-$120 | Bluetooth optional |
| Battery Charger | 48V 10A LiFePO4 Charger | 1 | ~$60-$100 | CC/CV, 54.6V max |
| Busbars/Nickel Strips | Pure Nickel 0.2x8mm | 1 roll | ~$15 | For cell connections |
| Battery Enclosure | IP65 Plastic Box | 1 | ~$30-$50 | Size: ~40x30x20cm |
2️⃣ Safety & Wiring
| Item | Example Product | Qty | Approx. Price | Notes |
|---|---|---|---|---|
| ANL Fuse + Holder | 80A ANL Fuse Kit | 1 | ~$10 | Overcurrent protection |
| Circuit Breaker | 48V 100A DC Breaker | 1 | ~$15 | Emergency cutoff |
| XT90/Anderson Connectors | XT90-S Anti-Spark | 2 pairs | ~$10 | High-current discharge |
| Balance Wires | 16S Balance Leads | 1 | ~$5 | For BMS balancing |
| Heat Shrink Tubing | 30mm (for cells) | 1 | ~$8 | Insulation |
3️⃣ Tools Needed
| Item | Example Product | Notes |
|---|---|---|
| Spot Welder | Kweld / Malectrics | For nickel strips |
| Multimeter | Fluke 101 | Voltage checks |
| Screwdrivers/Crimpers | Basic toolkit | Wiring |
| Battery Insulation Tape | Kapton Tape | Cell isolation |
4️⃣ Optional Upgrades
| Item | Example Product | Notes |
|---|---|---|
| Bluetooth BMS | JK BMS 16S | App monitoring |
| Volt/Ammeter | DROK 48V Gauge | Real-time stats |
| DC-DC Converter | 48V→12V 30A | For accessories |
🔧 Assembly Steps (Simplified)
-
Arrange Cells → 16 in series (16S) for 48V.
-
Spot-Weld Nickel Strips → Connect cells (+ to -).
-
Install BMS → Balance leads + main +/- wires.
-
Add Fuses/Breakers → Between battery and load.
-
Test Voltage → Ensure ~51.2V (LiFePO4) before charging.
-
Seal in Enclosure → Secure with foam/Kapton tape.
💡 Customization Options
-
For E-bikes/Scooters: Add a 48V motor controller & throttle.
-
For Solar: Include a 48V MPPT charge controller.
-
For Power Walls: Scale up to 48V 100Ah+ (parallel cells).
🚨 Safety Reminders
-
Never short-circuit 48V packs (sparks/fire risk).
-
Always use a BMS with LiFePO4/Li-ion.
-
Charge in a fireproof area (first few cycles).
