Whether you are running a 12.8V RV setup or a massive 48V off-grid solar array, setting the correct float voltage is the single most important factor for battery longevity. Unlike lead-acid batteries that require high-voltage “trickle” charging to prevent sulfation, LiFePO4 (Lithium Iron Phosphate) batteries are chemically stable and have different needs.
In this guide, we break down the ideal float parameters for $4S$ (12.8V) and $16S$ (48V) systems to ensure your investment lasts for its full 10-year potential.
What is Float Voltage in Lithium Batteries?
In the lithium world, “floating” serves one primary purpose: Load Sharing. When your battery is connected to a charger and a load (like a fridge or inverter) simultaneously, the float voltage allows the charger to power the electronics directly. This prevents the battery from constantly micro-cycling between 99\% and 100\%, which reduces internal wear.

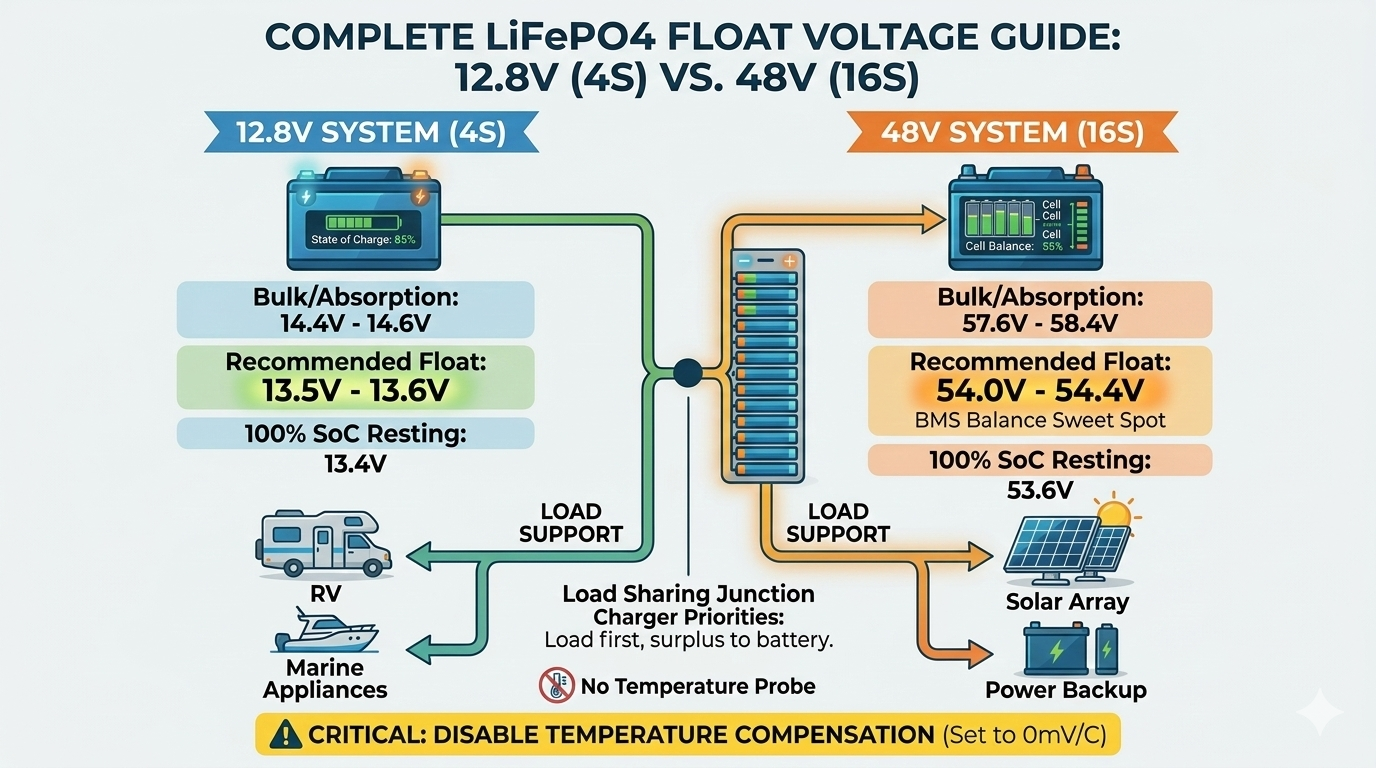

Technical Breakdown: 12.8V vs. 48V Systems
The following table outlines the critical charging stages. While $12.8V$ systems are more forgiving, $48V$ systems require precision because small cell voltage drifts are multiplied by 16.
Core Voltage Parameter Comparison
| Charging Stage | 12.8V System (4S) | 48V System (16S) | Per Cell Reference | Purpose & Description |
| Bulk/Absorption | $14.4V – 14.6V$ | $57.6V – 58.4V$ | $3.60V – 3.65V$ | Fast charge to 100% capacity. |
| Max Float (High) | $13.8V$ | $55.2V$ | $3.45V$ | Best for heavy constant DC loads. |
| Recommended Float | $13.5V – 13.6V$ | $54.0V – 54.4V$ | $3.37V – 3.40V$ | The “Sweet Spot” for longevity. |
| Storage Float (Low) | $13.4V$ | $53.6V$ | $3.35V$ | Best for UPS / Backup / Standby. |
| BMS Cut-off | $14.8V$ | $59.2V$ | $3.70V$ | Safety shut-off for overvoltage. |
Finding the “Sweet Spot” for Your Application
Not every system should be set the same way. Your float voltage should match how you use your power.
Float Voltage Decision Matrix
| Application | 12.8V Setting | 48V Setting | Logic |
| Off-Grid Solar | $13.6V$ | $54.4V$ | High voltage support for frequent appliance starts. |
| RV / Marine | $13.5V$ | $54.0V$ | Balances full capacity with chemical stability on the road. |
| UPS / Backup | $13.4V$ | $53.6V$ | Minimizes “voltage stress” during months of idle time. |
| Heavy DC Loads | $13.8V$ | $55.0V$ | Prevents voltage sag from triggering inverter alarms. |
Critical Technical Analysis
1. The 48V Imbalance Risk
In a $16S$ (48V) system, if your float is set too high (e.g., above $55V$), any “runner cell” (a cell with slightly less capacity) may spike in voltage. This can trigger the BMS to disconnect the entire battery bank. A conservative float of $53.6V$ to $54.0V$ keeps the pack balanced and stable.
2. Calendar Life vs. High Voltage
LiFePO4 cells degrade faster when held at $3.6V+$ for extended periods. By dropping to a float of $3.35V$ – $3.37V$ per cell, you allow the internal chemistry to relax, significantly extending the “calendar life” of the battery.
3. Disable Temperature Compensation
Important: Most solar controllers come with “Temperature Compensation” enabled for lead-acid batteries. You must disable this for LiFePO4. Lithium does not need higher voltage when cold; in fact, charging at high voltages in freezing temperatures can permanently damage the cells.
Conclusion
To get the most out of your LiFePO4 battery, avoid the “lead-acid mentality” of high float voltages. For most users, $13.5V$ for 12V systems and $54.0V$ for 48V systems provides the perfect balance between keeping your devices powered and keeping your battery healthy for thousands of cycles.
