LiFePO4 batteries, also known as LFP batteries, have gained significant popularity due to their high safety, long cycle life, and environmental friendliness. The internal structure of an LFP battery primarily consists of:
- Positive Electrode: Composed of lithium iron phosphate (LiFePO4) coated on a conductive metal foil. This is where the lithium ions are stored and released during charging and discharging.
- Negative Electrode: Typically made of graphite, which serves as the host for lithium ions.
- Separator: A porous membrane that physically separates the positive and negative electrodes, preventing short circuits while allowing the passage of lithium ions.
- Electrolyte: A liquid or solid material that conducts ions between the electrodes.
- Current Collector: Conductive tabs that connect the electrodes to the external circuit.
Charging Methods for LiFePO4 Batteries
The charging process of LiFePO4 batteries involves moving lithium ions from the negative electrode to the positive electrode. Here are the common charging methods:
- Constant Current-Constant Voltage (CC-CV) Charging: This is the most widely used method. Initially, the battery is charged at a constant current until it reaches a certain voltage. Then, the current is reduced to maintain a constant voltage until the charging rate drops to a preset value.
- Pulse Charging: In this method, the charging current is applied in pulses, which can improve the charging efficiency and battery life.
- Temperature Compensated Charging: To ensure optimal performance and safety, the charging parameters can be adjusted based on the battery’s temperature.

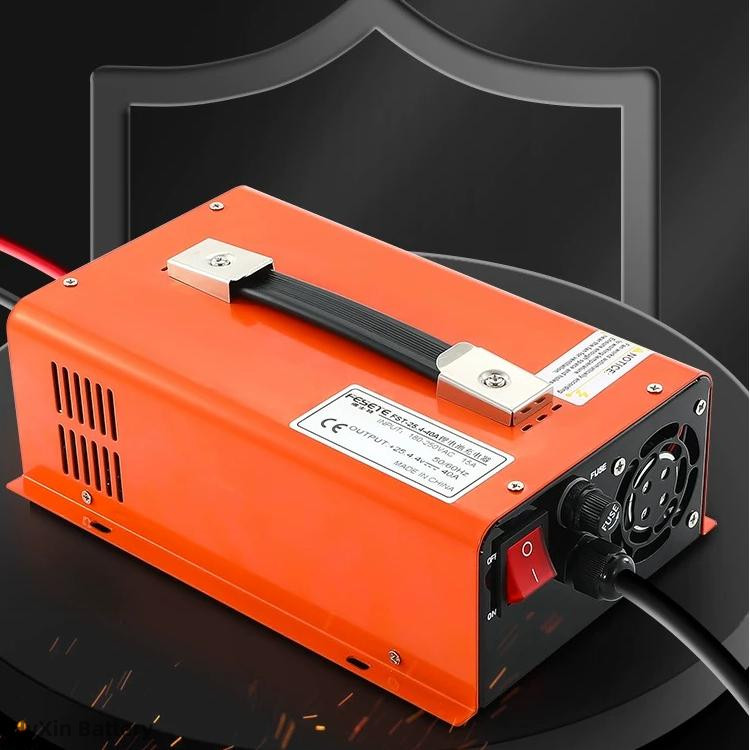

Essential Parts for a LiFePO4 Charger
A LiFePO4 charger, designed to safely and efficiently charge lithium iron phosphate batteries, The output voltage of the charger should be slightly higher than the rated voltage of the battery, and the output current should be greater than or equal to the rated current of the battery. Typically consists of the following essential components:
-
Power Supply:
- AC-DC Converter: This is the core component that converts AC power from the mains supply into DC power suitable for charging the battery.
- Transformer: Reduces the input voltage to a safer level for the rectifier and regulator stages.
- Rectifier: Converts the AC voltage into DC voltage.
- Filter: Smooths out the pulsating DC voltage from the rectifier.
-
Control Circuitry:
- Microcontroller: The “brain” of the charger, controlling the charging process and monitoring various parameters like voltage, current, and temperature.
- Sensors: These measure the battery’s voltage, current, and temperature, providing feedback to the microcontroller.
- Timing Circuit: Determines the duration of each charging stage.
-
Charging Stages:
- Constant Current (CC) Stage: Initially, the charger delivers a constant current to the battery, rapidly increasing its voltage.
- Constant Voltage (CV) Stage: Once the battery reaches a certain voltage, the charger switches to constant voltage mode, maintaining the voltage while the current gradually decreases.
- Float Charge Stage (Optional): In some chargers, a low current is applied to maintain the battery’s charge level over extended periods.
-
Safety Features:
- Overcharge Protection: Prevents the battery from being overcharged, which can damage its cells.
- Overcurrent Protection: Limits the charging current to prevent overheating and damage to the battery or charger.
- Overvoltage Protection: Protects against excessive voltage spikes.
- Short Circuit Protection: Disconnects the battery in case of a short circuit.
- Temperature Protection: Monitors the battery’s temperature and adjusts the charging process to prevent overheating.
Additional Considerations:
- Battery Management System (BMS): A BMS is often integrated into LiFePO4 batteries to monitor and balance individual cells, ensuring optimal performance and safety.
- Cooling System: For high-power chargers, a cooling system (e.g., fans or heat sinks) may be necessary to dissipate heat generated during the charging process.
By understanding these essential components and safety features, you can choose the right LiFePO4 charger for your specific needs.
Key Considerations for Charging LiFePO4 Batteries:
- Avoid Overcharging: Overcharging can damage the battery and reduce its lifespan.
- Avoid Deep Discharging: Frequent deep discharging can also shorten the battery’s life.
- Monitor Temperature: Extreme temperatures can affect battery performance and safety.
- Follow Manufacturer’s Guidelines: Always refer to the battery manufacturer’s recommendations for charging and discharging.
By understanding the internal structure, charging methods, and selecting a suitable charger, you can optimize the performance and lifespan of your LiFePO4 battery.
