How to Balance LiFePO4 Batteries?

LiFePO4 batteries, also known as lithium iron phosphate batteries, have gained significant popularity due to their inherent safety, long lifespan, and high performance. They are widely used in electric vehicles, solar energy storage systems, and various other applications. Balancing LiFePO4 batteries is crucial for optimizing their performance, extending their lifespan, and ensuring safe operation.

Why is Balancing Important?

• Improved Performance:Balanced cells contribute to consistent power delivery and efficient energy utilization.
• Extended Lifespan:By preventing cell imbalance, balancing helps to prolong the overall battery life.
• Enhanced Safety:Unbalanced cells can lead to overheating, swelling, or even fires, making balancing crucial for safety.

Methods for Balancing LiFePO4 Batteries

1. Passive Balancing:This method utilizes passive balancing resistors to dissipate excess voltage from high-voltage cells to lower-voltage cells. It is a simple and low-cost approach but can be slow and inefficient.
2. Active Balancing:Active balancing involves transferring charge between cells using electronic circuitry. It is a more efficient and faster balancing method but requires more complex circuitry.

What’s Passive balancing?

Passive balancing is a method used to maintain the balance of LiFePO4 batteries, ensuring that all cells within the battery pack are at a similar state of charge (SOC). This is crucial for optimal performance, extended lifespan, and safety.

How Passive Balancing Works:

1. Current Flow:When current enters the battery, it fills the cells.
2. Cell Voltage Monitoring:The Battery Management System (BMS) continuously monitors the voltage of individual cells.
3. Excess Energy Dissipation: If a cell reaches its full charge before others, the excess energy is dissipated through a resistor, effectively reducing the charging current to that cell.
4. Prioritizing Lower Voltage Cells: The remaining current is then directed towards cells with lower voltages, ensuring they reach a similar charge level.

Advantages of Passive Balancing:

• Simplicity:It’s a relatively straightforward process that doesn’t require complex hardware.
• Low Cost:Passive balancing systems are generally less expensive than active balancing systems.
• Minimal Maintenance:It often requires little to no user intervention.

Disadvantages of Passive Balancing:

• Less Efficient: Passive balancing can be less efficient than active balancing, especially when dealing with significant cell imbalances.
• Energy Loss:Some energy is lost as heat during the dissipation process, reducing overall efficiency.
• Slower Balancing Time:It may take longer to balance cells compared to active balancing methods.

Passive balancing is a suitable choice for many LiFePO4 battery applications, especially those with moderate balancing needs. It’s often integrated into the BMS of modern batteries, providing a reliable and low-maintenance solution. However, for applications requiring faster and more precise balancing, active balancing may be a better option.

What’s Active balancing?

Active balancing is a more advanced method of balancing LiFePO4 batteries compared to passive balancing. It involves actively transferring excess energy from higher voltage cells to lower voltage cells within the battery pack. This ensures that all cells are brought to a similar state of charge (SOC), improving battery performance and lifespan.

How Active Balancing Works:

1. Cell Voltage Monitoring:A Battery Management System (BMS) continuously monitors the voltage of individual cells.
2. Identifying Voltage Imbalances:The BMS identifies cells with higher voltages than the average.
3. Energy Transfer:Excess energy from these higher voltage cells is transferred to lower voltage cells through a dedicated balancing circuit.
4. Equalization:This process continues until all cells reach a similar voltage level.

Advantages of Active Balancing:

• Faster Balancing:Active balancing can significantly reduce the time required to balance cells compared to passive balancing.
• Higher Efficiency:Less energy is wasted as heat during the balancing process, leading to improved overall efficiency.
• More Precise Balancing:Active balancing can achieve a higher degree of cell balance, ensuring optimal performance.

Disadvantages of Active Balancing:

• Higher Complexity:Active balancing systems are more complex and may require additional hardware.
• Higher Cost:The added complexity can increase the cost of the battery pack.

Active balancing is a valuable tool for maintaining the health and performance of LiFePO4 batteries, especially in applications where rapid charging and discharging cycles are common. While it may be more costly than passive balancing, the benefits in terms of efficiency and lifespan can often outweigh the additional expense.

This chart shows a typical battery pack at full capacity. In this example, full capacity means 90% charge, because keeping the battery near 100% capacity for a long time will quickly reduce its service life. Fully discharged means discharging to 30%, which prevents the battery from entering a deep discharge state.

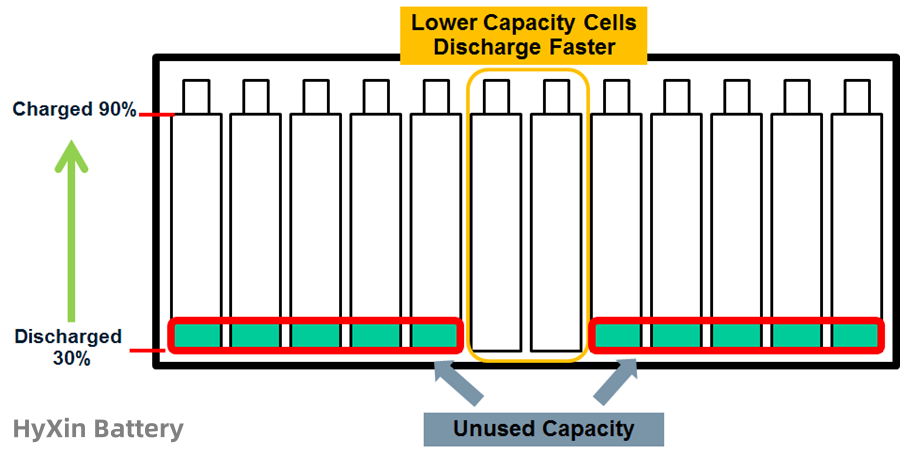

Over time, some cells will have worse characteristics than others, resulting in a battery pack discharge characteristic like that shown in below chart.

As you can see, even though some cells still have a lot of energy left, weak cells limit system runtime. A 5% mismatch in battery capacity results in 5% of the energy not being used. For large batteries, this means a lot of energy is wasted, which is especially critical for remote systems and systems that are difficult to maintain. Having some energy not used also results in more charge and discharge cycles, which reduces battery life and results in higher costs due to frequent battery replacement.

Active balancing redistributes charge from strong cells to weak cells, which can completely deplete the energy in the battery pack.

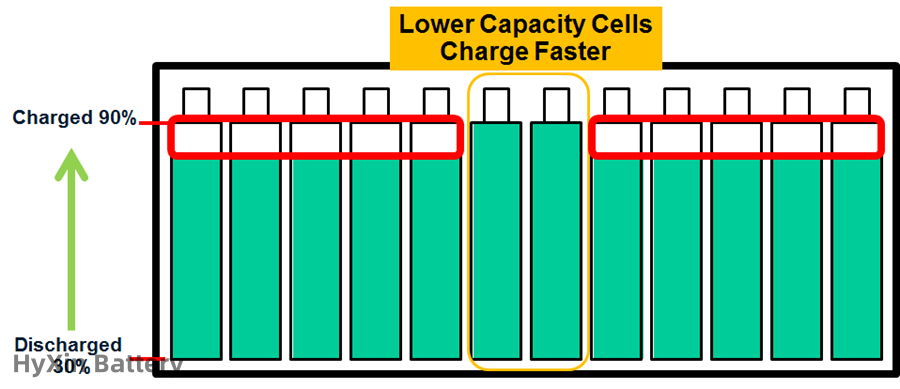

If the battery pack is charged without balancing, weak cells will reach full capacity before strong cells. Once again, the weak cells become the limiting factor; this time, they limit the total energy that can be contained in the system. Figure 4 illustrates this limitation when charging.

Active balancing can achieve full capacity of the battery pack by redistributing the charge during charging. It should be noted that although this article does not discuss the time ratio required for balancing and the impact of balancing current on time, they still need to be considered.

Balancing Principles for LiFePO4 Batteries

Battery balancing is the process of equalizing the voltage levels of individual cells within a battery pack. Over time, due to variations in manufacturing, charging, and discharging patterns, individual cells may develop slight differences in voltage. If left unaddressed, these voltage imbalances can lead to premature cell degradation, reduced battery capacity, and potential safety hazards.

Balancing LiFePO4 batteries aims to:

1. Equalize Cell Voltages:Bring the voltage of each cell to a uniform level, ensuring consistent performance and prolonging battery life.
2. Prevent Overcharging and Undercharging:Balance charging ensures that no cell is overcharged or undercharged, protecting the cells from damage and potential safety risks.
3. Optimize Battery Performance:By maintaining balanced voltages, the battery pack delivers consistent power output and maximizes its overall capacity.

Factors Affecting LiFePO4 Battery Balancing

Several factors influence the frequency and effectiveness of LiFePO4 battery balancing:

1. Battery Age and Usage:As batteries age and experience repeated charging and discharging cycles, the need for balancing increases.
2. Charging and Discharging Patterns:Uneven charging and discharging patterns can accelerate voltage imbalances, necessitating more frequent balancing.
3. Battery Design and Manufacturing:Variations in cell manufacturing can affect their individual voltage profiles, influencing balancing needs.

HyXin Factory’s Advantages in LiFePO4 Battery Balancing

HyXin Factory is committed to providing high-quality and safe LiFePO4 batteries that incorporate advanced balancing features:

1. Integrated BMS with Active Balancing:Our batteries feature an integrated BMS with active balancing circuitry that continuously monitors and balances cell voltages during charging and discharging, ensuring optimal performance and safety.
2. Precise Voltage Balancing:Our BMS employs high-precision voltage monitoring and balancing algorithms to achieve accurate and efficient cell balancing.
3. Extended Battery Life:By maintaining balanced cell voltages, our batteries experience reduced stress and degradation, leading to a longer lifespan.
4. Enhanced Safety:Balanced cells minimize the risk of overcharging and undercharging, contributing to overall battery safety.

Additional Considerations for LiFePO4 Battery Balancing

1. Regular Monitoring:Regularly monitor the voltage of each cell in your LiFePO4 battery pack to identify any imbalances.
2. Balancing During Charging:It is recommended to perform balancing during the charging process when the cells are at a higher voltage level.
3. Professional Assistance:If you encounter significant voltage imbalances or have concerns about balancing your LiFePO4 batteries, consult with a qualified battery expert or technician.

Balancing LiFePO4 batteries is an essential practice for maximizing their performance, extending their lifespan, and ensuring safe operation. HyXin Factory’s commitment to advanced balancing technology and high-quality batteries makes our products a reliable choice for applications that demand consistent power, long-lasting energy storage, and uncompromising safety.
